Wednesday, July 25, 2012

Cognos: Bursting Report to a file system

Bursting cognos report to Local File system and also run a script so that bursted reports can be renamed.

1) Go to the dispatcher --  ( See the picture below for reference )

2) Click on the dispatcher link to see the content manager service.

 3) Go to the settings tab and click on edit on advance setting line -
4) Create following  2 variables and provide the path where you want to get the files bursted.
 5) Save it and go to cognos configuration to do the following setting.
 6) Run the report that you have to burst with the following settings.

7) You will get the output in D:/Report folder, now you want that bursted reports should get proper names or they should get names according to there bursted key.
8) Create a notepad file giving it a name "burstKey.bat" and paste the following contents and save it in D:\Reports folder.
@echo off
Rem  this batch file is launched with a working directory of \bin

set dest=D:/Reports

echo "BurstKey Script" >> %dest%/batch.txt
echo Batch File Log >> %dest%/batch.txt

rem       Set the values for the PDF file and XML
rem       to environment variables
rem       the reason for this is the scripting language
rem       cannot read variables as parameters
set parameter_pdf=%1%
set parameter_xml=%2%

rem      Logs the variables to a batch log file
echo values set >> %dest%/batch.txt
echo Parameter_pdf: %parameter_pdf% >> %dest%/batch.txt
echo Parameter_xml: %parameter_xml% >> %dest%/batch.txt

rem      Calls the script file
call %dest%/burstKeyRename.vbs

echo Completed >> %dest%/batch.txt
9) create a file "burstKeyRename.vbs" and paste the following contenets in there and save it in D:\Reports folder.
'

'
Set objFSO = CreateObject("Scripting.FileSystemObject")
Set xmlDoc = CreateObject("MSXML.DOMDocument")
Set WshShell = WScript.CreateObject("WScript.Shell")
Set WshSysEnv = WshShell.Environment("process")

' Values for Environment can be "user", "system", "volitile" and "process
' The value "process" is the only valid one for this type of operation.
Set WshSysEnv = WshShell.Environment("process")

' To check the value for process environment variable
' this can be tested at the command prompt.
' Uncomment the next line and run this from command line
' WScript.Echo WshSysEnv("parameter_xml")

' Initializing Variables
xFile = WshSysEnv("PARAMETER_XML")    'Name of the XML file
sFile = WshSysEnv("PARAMETER_PDF")    'Name of the PDF file

' ***** Start override section for testing outside Cognos environment *****
'
' Set the following if-then condition to "true" for local testing using files that
' have already been burst.  If the if=then condition  is set to "false", then the
' environment variables must be set properly otherwise a  run-time error will occur.
'
If (false) Then
    'The filename component of the output file. Do not include the extension.
    tempName = "D:\C83Outputs\wottcattondxp\TestOutputs\911_1190657394280"
    ' Derive the name of the XML descriptor file
    xFile = tempName & "_desc.xml"
    ' Derive the name of the new output file.
    sFile = tempName & ".pdf"
End If
'
' ***** End override section for testing outside Cognos environment *****

sMsg = ""
sNewFileName = ""

'
' Read the XML descriptor file created by CRN/Cognos 8 to get the value of the element. This
' value will be used as the new filename. If there is no value in the element, a new file will not
' be created.  It is assumed that the value of the element does not contain any of the
' reserved characters the underlying OS uses for filename.
'
xmlDoc.async = False
xmlDoc.Load xFile

If (xmlDoc.parseError.errorCode <> 0) Then
    sMsg = xFile & " : Error parsing XML " + xmlDoc.parseError.reason
Else
    Set rootXML = xmlDoc.documentElement
    Set oNodeList = rootXML.childNodes
    iNode = 0

    For Each Item in oNodeList
        If (xmlDoc.documentElement.childNodes.Item(iNode).basename = "burstKey") Then
            sNewFileName = xmlDoc.documentElement.childNodes.Item(iNode).text
            If (sNewFileName = "") Then
                sMsg = xFile & " : element in '" & xFile & "' is empty. Unable to copy file."
            Else
                sMsg = xFile & " : Burst key value is '" & sNewFileName & "'"
            End If

            ' This if condition  was added to support the use of CAMID for the burst key
            if (instr(sNewFilename, "CAMID")) Then
                intFirstPosition = instr(sNewFilename, ":")
                intSecondPosition = instr(intFirstPosition, sNewFilename, ")")
                sNewFileName = mid (sNewFilename, intFirstPosition + 1, intSecondPosition - (intFirstPosition + 2))
                sMsg = xFile + " : Value extracted from CAMID is '" & sNewFileName & "'"
            End If
        End If
        iNode = iNode + 1
    Next

    Set oNodeList = Nothing
    Set rootXML = Nothing
End If

'
' If there is a new filename, make of copy of it otherwise just log an error. A local log file with a name
' that is derived using the filename given to the output by CRN/Cognos 8 will be created so it is easy
' to determine if the file copied successfully  or not. Since this information will also be written to the
' persistent log file, writing to the local log file can be bypassed if writing it creates too much clutter in the
' location specified in CM.OUTPUTLOCATION.
'
if (sNewFileName <> "") Then
    sNewFileName = getPath(sFile) & sNewFileName & ".pdf"
    writeLocalLogFile sFile, sMsg & vbCrLf & "Copying file named '" & sFile & "' to '" & sNewFileName & "'" & vbCrLf
    objFSO.CopyFile sFile, sNewFileName
Else
    ' Set this variable to an error message so it will be picked up below when writing to the persistent log file.....
    sNewFileName = ""
    writeLocalLogFile sFile, sMsg & vbCrLf
End If

'
' Update the persistent log file with the result. This log file will have data appended to it in order to keep the history.
'
sMsg = "----- Start of entry -----" & vbCrLf
sMsg = sMsg & "Date : " & date & vbTab & "Time : " & time & vbCrLf
sMsg = sMsg & vbCrLf & "Original Name :" & sFile & vbCrLf
sMsg = sMsg &  "New Name : " & sNewFileName & vbCrLf
sMsg = sMsg &  "----- End of entry -----" & vbCrLf & vbCrLf

sPersistLogFile = getPath(sFile) & "crn_pdf_rename.txt"
writePersistLogFile sPersistLogFile, sMsg
'
' All done.. Release references to the objects used in this app.
'
Set objFSO = Nothing
Set xmlDoc = Nothing
Set WshShell = Nothing
Set WshSysEnv = Nothing


Function getPath(sFileName)
    sPathOnly = ""
    lastSlashPos = InStrRev(sFileName, "\")

    if (lastSlashPos > 0) Then
        getPath = mid (sFileName, 1, lastSlashPos)
    End If
End Function

'
' writeLocalLogFile
'     Create a log file using a name derived from the filename that was generated by
'    CRN/C8 before it was written to the location specified by CM.OUTPUTLOCATION.
'
Sub writeLocalLogFile(sFileName, sData)
    sLogFile = left(sFileName, instr(sFileName,".")-1) +   "_log.txt"
    writeLogFile sLogFile, sData
End Sub

'
' writePersistLogFile
'     Write a record to the persistent log file
'
Sub writePersistLogFile(sFileName, sData)
    writeLogFile sFileName, sData
End Sub

'
' writeLogFile
'     Generic routine to open a file, append a record to it and close the file
'
Sub writeLogFile(sFileName, sData)
    If (objFSO.FileExists(sFileName)) Then
        Set logFile = objFSO.GetFile(sFileName).OpenAsTextStream(8)
    Else
        Set logFile = objFSO.CreateTextFile(sFileName)
    End If

    logFile.Write sData
    logFile.Close

    Set logFile = Nothing
End Sub
now follow the 6th step again and you will get proper pdf output with name same as burst key.
Regards
Cognos Teacher..
(concept taken from cognos-ibm.blogspot.com)

Cognos PDF output in Single page

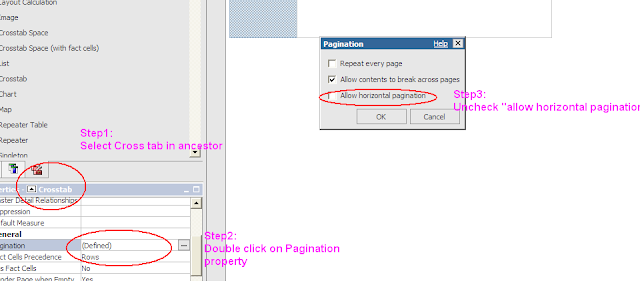

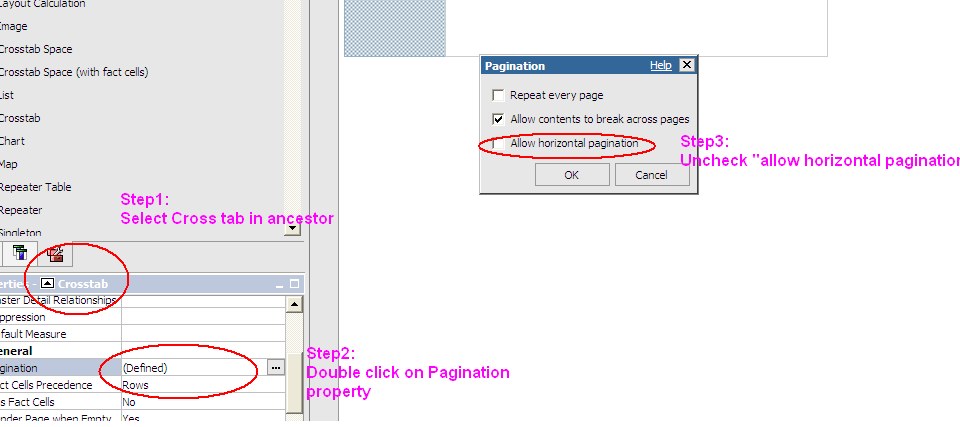

When we have more columns in cross tab or list and run in PDF format, we get some columns in one page and some columns on another page and so on.. We can simply avoid this by setting one property. By doing this, we can have all the columns of cross tab or list report in single page in PDF output format.


Cognos Chart limitations in EXCEL

The following Cognos chart properties are not supported in EXCEL
1) Tool tips
2) Conditional Text
3) Depth, Visual angle
4) Show values
5) Marker Text location
6) Show baseline
7) n-degree rotation lables
8) border, Margin, box type
9) Font, subtitle, Include 0 for Auto scale
10) Scale

and many more .....
